Infrared Lens Usage And Protection Guide (Compact Version)

Brief Overview

Infrared lenses are high-precision optical components manufactured with exclusive infrared crystal substrates and anti-reflective coatings. Unlike regular visible-light lenses, they feature distinct physical drawbacks: brittle texture, high moisture susceptibility, easy surface scratching and oxidation.

Standardized operation, storage and maintenance are critical to sustain stable thermal imaging quality, accurate temperature measurement and extended service life. This guideline applies to infrared lenses deployed in industrial testing, security monitoring, automotive night vision and thermal inspection tasks.

Table of Contents

1.Lens Storage Standards

2.Key Rules for Daily Operation

3.Approved Lens Cleaning Procedures

4.Environment-Based Protection Measures

5.Typical Defects & Self-Check Methods

6.Storage Rules for Long-Term Idle Equipment

1. Lens Storage Standards

Improper storage is the primary trigger of lens performance degradation and permanent damage. Follow the storage rules below strictly:

Temperature & Humidity Control

Store lenses in dry, clean spaces with temperatures ranging from 10℃ to 30℃ and relative humidity maintained between 40% and 60%. For long-term storage, place lenses inside sealed moisture-proof boxes filled with desiccants to stop mold growth and oxidation on optical surfaces.

Anti-Impact Safeguards

Infrared crystal materials are fragile. Always attach original lens caps and protective foam padding during placement and transportation. Do not squeeze, stack or drop the lens unit, which may cause lens chipping, barrel deformation and optical axis misalignment.

Contamination Isolation

Keep lenses far away from oil stains, dust, smoke, acid-base chemicals and volatile organic solvents. These pollutants corrode surface coatings and reduce infrared light transmittance.

Daily Placement Rule

Cover the lens completely after every use. Never leave the optical surface exposed to open air for extended periods.

2. Key Rules for Daily Operation

Standardized daily handling minimizes man-made damage and preserves consistent imaging performance:

Avoid prolonged intense thermal radiation exposure: Do not point lenses directly at the sun, laser beams or open high-temperature flames. Excessive thermal radiation will leave irreversible burns on anti-reflective coatings, resulting in permanent fixed spots, ghost images and stray light artifacts. Install professional lens hoods or protective filters when working under high-radiation conditions.

Prevent direct contact and collisions: Never touch the optical surface with bare fingers. Sweat and skin grease leave stubborn residues and scratch delicate coatings. Take extra care to avoid friction and impacts during field surveys and vehicle-mounted applications.

Avoid extreme thermal shock: Refrain from moving equipment rapidly between high-temperature and low-temperature environments. Let the unit sit idle for 5–10 minutes to acclimate to ambient temperature, eliminating lens condensation and focal point shifting.

Waterproof and moisture control: Lenses without waterproof ratings must never contact rain or standing water. After operating in high-humidity environments, wipe down the lens barrel thoroughly and transfer the unit to a dry area for dehumidification.

Gentle mechanical adjustment: Rotate zoom and focus rings with light force. Rough twisting and frequent power cycling of motorized lenses loosen internal structures and shift focus positioning.

3. Approved Lens Cleaning Procedures

Anti-reflective coatings on infrared lenses are extremely delicate; improper cleaning leads to permanent, irreparable harm. All cleaning work must comply with the following rules:

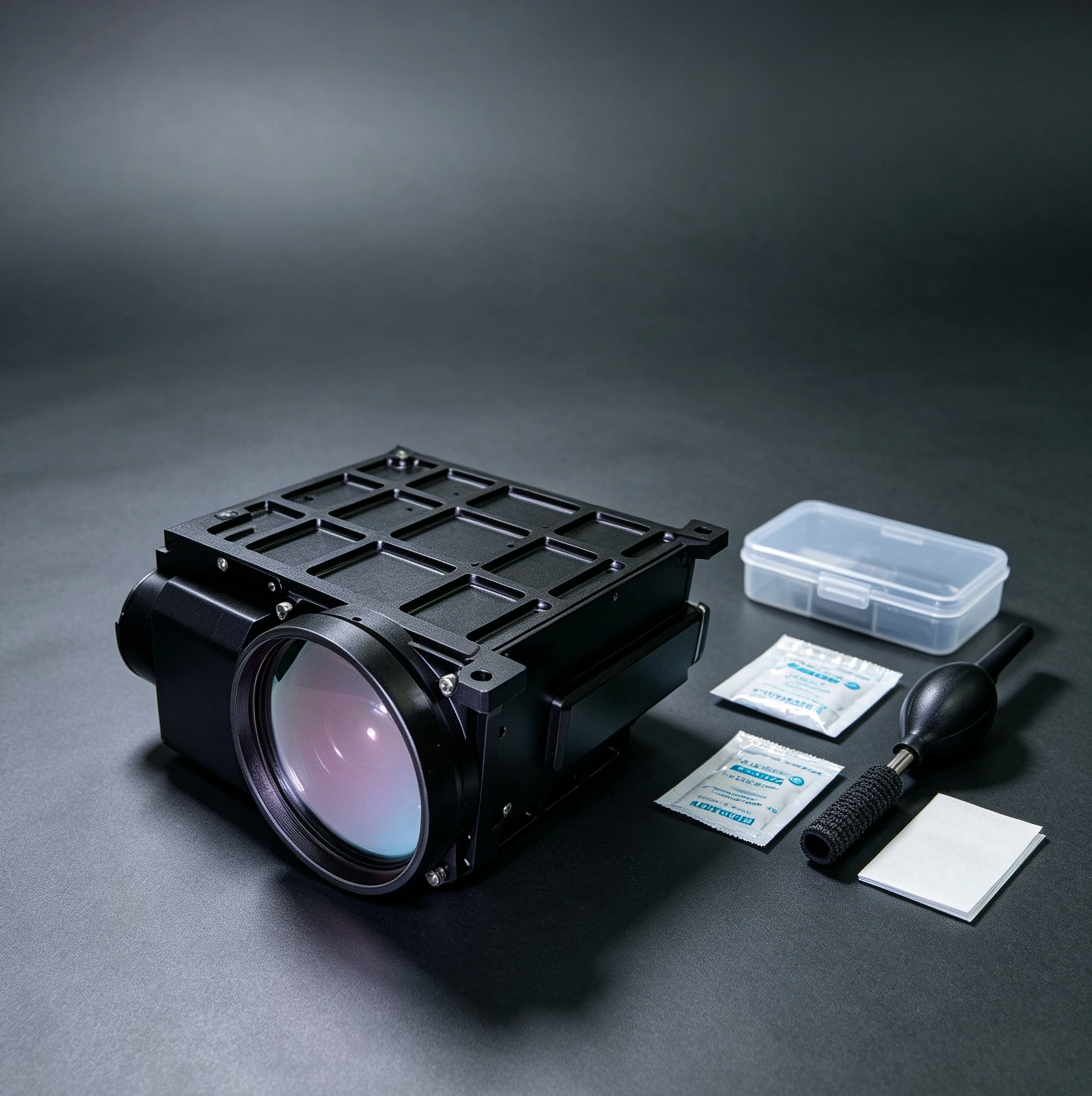

Daily dust removal: Blow loose surface dust away using a dedicated air blower. Dry wiping without prior dust removal is forbidden, as grit particles will scratch coating layers.

Standard stain removal: Spray a tiny amount of special lens cleaner onto lint-free lens paper, then wipe the lens steadily in one single direction. Do not rub repeatedly or wipe in circular motions.

Heavy contamination disposal: Alcohol, acetone and other organic solvents are prohibited for cleaning—these chemicals erode and peel off protective coatings. Severe surface stains require professional cleaning and calibration by certified technicians.

Cleaning restrictions: Do not use toilet paper, regular cloth or clothing fabric for wiping. Avoid soaking or flushing lenses with liquid. Unauthorized lens disassembly will break internal sealing and shift the optical axis.

4. Environment-Based Protection Measures

Outdoor & vehicle-mounted use: Fit matching waterproof, dustproof outer protective covers and wipe covers regularly to prevent light blockage and distorted imaging. Equip anti-fog accessories for low-temperature, fog-prone working conditions.

High-dust & high-temperature industrial scenarios: Mount external infrared protective windows to block dust, welding sparks and hot flue gas. Remove surface dust every day and complete full maintenance on a weekly basis.

Low-temperature cold storage environments: Do not force focus adjustment under frigid temperatures. After powering off cold equipment, avoid moving it straight into warm rooms to cut down condensation and focal drift risks.

5. Typical Defects & Self-Check Methods

Operators can identify lens abnormalities quickly by observing imaging effects and arrange timely maintenance:

Hazy, foggy images: Caused by mold growth, trapped moisture or oil residue on lens surfaces

Fixed dark or bright spots: Result from coating burns and persistent surface contaminants

Blurry edges and inaccurate temperature readings: Triggered by physical collision that shifts the optical axis and focal point

Severe ghost images and stray light: Stem from aged coatings, surface abrasion or intense light interference

6. Storage Rules for Long-Term Idle Equipment

For infrared lenses that remain unused over long periods, standardized storage prevents performance loss:

Fully clean and dry all dust and stains from the lens surface

Attach both front and rear protective caps tightly for complete sealing

Place the lens into a sealed moisture-proof box loaded with qualified desiccants

Store under room temperature; keep away from compression, direct sunlight and damp spaces

Power on the full device for 5–10 minutes every 1–2 months to stop internal damp buildup and mechanical seizing

Conclusion

Infrared lenses are precision optical instruments with strict usage and storage requirements. Moisture exposure, surface scratches, strong light radiation, physical collision and irregular maintenance all easily cause permanent damage. During daily use, operators should stick to four core guidelines: dust prevention, moisture resistance, light shielding and gentle handling. Carry out standardized cleaning and storage routines, conduct regular self-inspections, and send faulty lenses to professionals for repair once abnormalities appear. Proper maintenance maintains optimal imaging and temperature measurement performance, extends lens service life, and lowers long-term replacement and maintenance expenses.
