1. Introduction to Night Vision Objective Lens
2. Technical Principles of Night Vision
2.1 Low-Light Night Vision Technology
2.2 Infrared Night Vision Technology
2.3 Thermal Imaging and Its Advantages
3. Key Characteristics of Night Vision Objective Lenses
3.1 Optical Design and Focal Length
3.2 Coatings and Light Transmission
3.3 Environmental Adaptability
4. Applications of Night Vision Lenses
4.1 Military and Defense
4.2 Security and Law Enforcement
4.3 Automotive Night Driving
4.4 Outdoor Exploration and Rescue
5. Product Development and Practical Use Cases

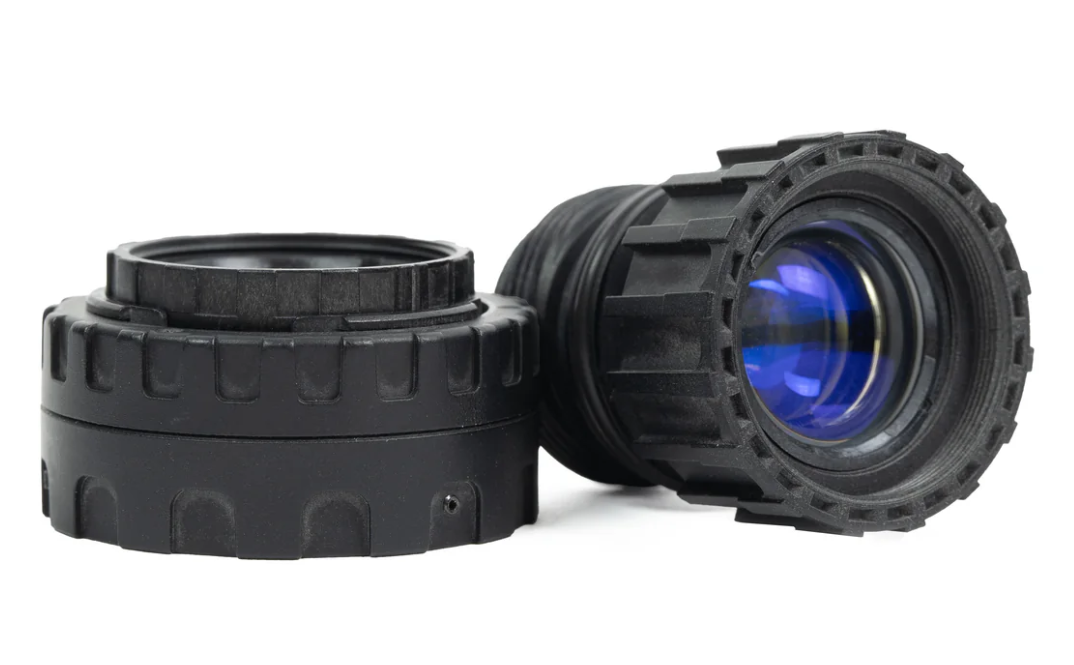

A night vision objective lens is the core optical component of night vision equipment, enabling clear imaging under low-light or no-light conditions. By combining advanced optical materials with photoelectric imaging technology, these lenses extend human vision into environments where the naked eye is ineffective, such as nighttime battlefields, security surveillance, and vehicle driving at night.
Low-light night vision relies on image intensifier tubes to amplify weak natural light (such as starlight or moonlight). The incoming photons are converted into electrons, multiplied, and then converted back into a visible image.
Direct observation: binoculars, weapon sights, pilot goggles.
Indirect observation: low-light video systems.
This technology is widely adopted due to its relatively low cost and good image clarity in starlit conditions.
Infrared night vision can be divided into:
Active infrared: requires an infrared illuminator that reflects light from targets back into the sensor. Effective but can be detected by adversaries.
Passive infrared: uses natural infrared radiation from objects. More covert and suitable for military/security applications.
Thermal imagers detect infrared radiation emitted by objects above absolute zero. The hotter the object, the stronger the radiation.
Advantages include:
Works in complete darkness.
Effective in fog, rain, and smoke.
Detects camouflage and concealed targets.
Long detection range and strong anti-interference ability.
Thermal imaging has become a focus in modern night vision development and is gradually replacing traditional low-light devices in many fields.
High-performance objective lenses use precise optical designs to ensure wide field of view, high resolution, and minimal distortion. A well-designed focal length allows adaptability for both close-range and long-distance observation.
Special anti-reflective coatings are applied to enhance light transmission in both visible and infrared spectra. This ensures higher contrast images, especially under low illumination.
Night vision lenses must withstand temperature extremes, humidity, and harsh outdoor conditions. Lenses designed with rugged housing and sealed optics maintain stable performance even in challenging environments.
From riflescopes to vehicle-mounted systems, night vision optics enable nighttime combat, reconnaissance, and surveillance.
Infrared and thermal imaging systems assist police and border patrol in monitoring restricted zones, detecting intruders, and conducting covert operations.
Car night vision systems improve driver safety by detecting pedestrians, animals, or obstacles beyond the range of headlights.
Night vision binoculars and thermal scopes are widely used in search and rescue, wildlife observation, and outdoor adventures.
Modern night vision objective lenses can be customized with zoom capability, interchangeable adapters, and multiple magnification levels. For example, attaching a long-focus lens to a standard night vision goggle can instantly transform it into a long-range observation device. These modular designs enhance usability and adaptability in the field.
Night vision objective lenses represent the intersection of optics, electronics, and material science, enabling humans to operate effectively in low-light and no-light conditions. With the continuous evolution of infrared detectors, coatings, and sensor technologies, the applications of night vision optics will expand further in both civilian and defense sectors.
