Target Size Matching Pitfall Avoidance Guide

Brief Introduction

Many engineers and purchasers often overlook the matching relationship between infrared lens and detector target surface during equipment assembly and product selection. Blindly installing lenses with mismatched parameters will trigger a series of problems such as vignetting, reduced effective field of view, blurred edge imaging and wasted detector pixel area. These issues will lower the overall imaging performance of thermal devices and even cause unnecessary material loss and rework costs. This paper sorts out four frequent mistakes made in target surface matching work, analyzes the root causes of each problem, and summarizes practical matching standards to help personnel complete lens and detector pairing accurately.

Here is Contents:

Mistake 1: Larger lens format is always compatible with small target detectors

Mistake 2: Only focus on focal length while ignoring target surface parameter matching

Mistake 3: Confuse optical format marking standards of different manufacturers

Mistake 4: Ignore the influence of lens distortion on large-size target surfaces

1. Mistake 1: Larger lens format is always compatible with small target detectors

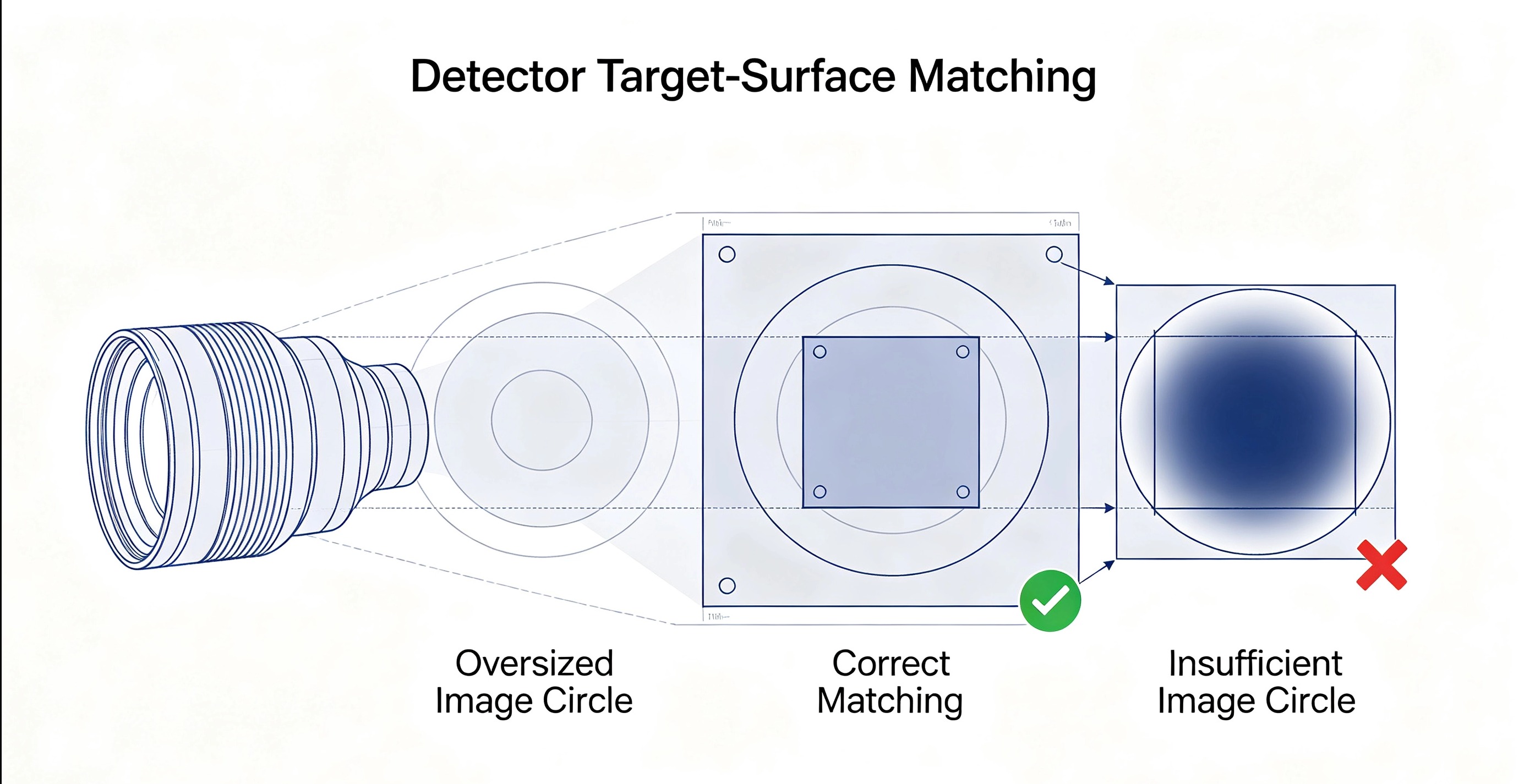

Most staff hold the view that a lens designed for a big target surface can be freely mounted on detectors with smaller target sizes, without worrying about negative effects. This idea does not conform to actual optical operating rules. If a lens supporting a large target surface is matched with a tiny detector chip, the light spot formed by the lens will far exceed the actual photosensitive area of the detector. Only a small central area of the detector can receive effective light, which greatly cuts down the available field of view. In practical application, users need to increase installation distance to capture complete scene information, sacrificing the detection range of the whole device. In addition, the peripheral light of large-format lenses has serious aberration. Even if only the central part of the detector is used, the edge picture of the screen will show obvious distortion and low contrast. The correct matching rule is to select a lens whose nominal target size is identical or slightly smaller than the detector target surface.

2. Mistake 2: Only focus on focal length while ignoring target surface parameter matching

When selecting infrared lenses, most technicians prioritize focal length to judge detection distance, and treat target surface specifications as secondary reference data. This one-sided selection logic easily leads to complete mismatch between lens and detector. A fixed focal length lens corresponds to a fixed maximum imaging circle. When the imaging circle size cannot cover the full target surface of the detector, dark shadows will appear around the frame, namely vignetting. Parts of the scene cannot be displayed normally, which brings hidden dangers to security monitoring and industrial temperature measurement. For example, a 12mm lens developed for 1/2 inch target cannot match a 1 inch large-size detector. Even if the focal length meets the distance requirement, four corners of the image will lose effective picture data. Before confirming lens orders, workers must cross-check both focal length and target surface format parameters at the same time.

3. Mistake 3: Confuse optical format marking standards of different manufacturers

Different optical component manufacturers adopt inconsistent marking rules for target surface formats, which creates confusion during cross-brand matching. Some factories mark the actual photosensitive diagonal size of the detector, while others label the theoretical design format of matched lenses, and the two sets of data cannot be directly equivalent. For instance, two products both marked "1/4 inch target" from different suppliers may have a diagonal difference of more than 0.5mm. If users match lenses and detectors of different brands only based on the digital labels on the parameter sheet, the imaging circle cannot fit the target surface precisely, resulting in uneven brightness across the screen. The proper operation is to take the actual diagonal length of the detector photosensitive area as the unified standard, instead of simply referencing the inch mark printed on the product nameplate. Communicate with suppliers to obtain accurate diagonal size data before matching.

4. Mistake 4: Ignore the influence of lens distortion on large-size target surfaces

Many people assume that as long as the lens imaging circle covers the target surface, the matching work is finished, and neglect the distortion difference at the edge of large-format target surfaces. Optical distortion of infrared lenses mainly concentrates on the outer edge of the imaging circle. When matched with a large target surface, the detector will collect the distorted light at the edge of the lens, causing deformation of the target outline in the picture. Straight lines such as wall edges and road guardrails will bend visibly, affecting the accuracy of distance measurement and target identification of ADAS and monitoring equipment. Small target detectors only use the central low-distortion area of the lens, so such defects are not obvious. For large target matching, users need to pick lenses with optimized edge distortion parameters, and conduct field imaging calibration after assembly to correct deformation errors.

Conclusion

The four typical errors summarized above frequently occur in the target surface matching process of infrared optical systems, which will damage imaging quality and bring extra production costs. Oversized lens formats cannot be randomly matched with small detectors; focal length selection cannot exclude target surface parameter verification; cross-brand format labels cannot be directly compared; large target surfaces need to take lens edge distortion into full consideration. Following the standardized matching logic clarified in this article can help assembly technicians and purchasing staff avoid parameter mismatch failures, reduce product rework rate, and guarantee that infrared lenses and detectors can exert their complete imaging performance after assembly.
