Two Easily Confused Infrared Devices in Daily Scenarios: Core Identification & Distinction Guide

Brief Introduction

A large number of non-professional users often mix up two mainstream infrared devices in daily life: thermal imaging infrared cameras and ordinary infrared night vision cameras. Their outer appearance looks similar, and both rely on infrared light to work under low-light conditions. Many buyers pick the wrong product due to unclear functional differences, resulting in failure to meet daily testing, security monitoring and home inspection demands. This paper sorts out the essential differences between the two devices from imaging principles, applicable scenes, judgment methods and cost characteristics, helping users quickly tell them apart and make rational purchasing decisions.

Here is Contents:

1.Distinct Working Principles of Two Types of Infrared Equipment

2.Visible Imaging Differences for Fast Identification

3.Different Applicable Scenarios and Actual Usage Limits

4.Obvious Gap in Manufacturing Cost and Market Price

1. Distinct Working Principles of Two Types of Infrared Equipment

Ordinary infrared night vision cameras need to carry built-in infrared fill lights. The equipment emits near-infrared light to irradiate surrounding objects, then receives the reflected light to form images. This mode belongs to active infrared imaging, which cannot capture temperature data of objects and only records visible outlines of targets.

Thermal imaging cameras adopt passive long-wave infrared receiving technology. The lens does not emit any light source; it only collects thermal radiation naturally released by all objects in the environment. The internal chip converts heat differences into distinguishable thermal pictures, and each pixel corresponds to an independent temperature value, supporting real-time temperature reading and abnormal heat source screening.

The core difference lies in whether extra infrared supplementary lighting is required and whether temperature data can be output. This fundamental principle determines all subsequent gaps in use and performance.

2. Visible Imaging Differences for Fast Identification

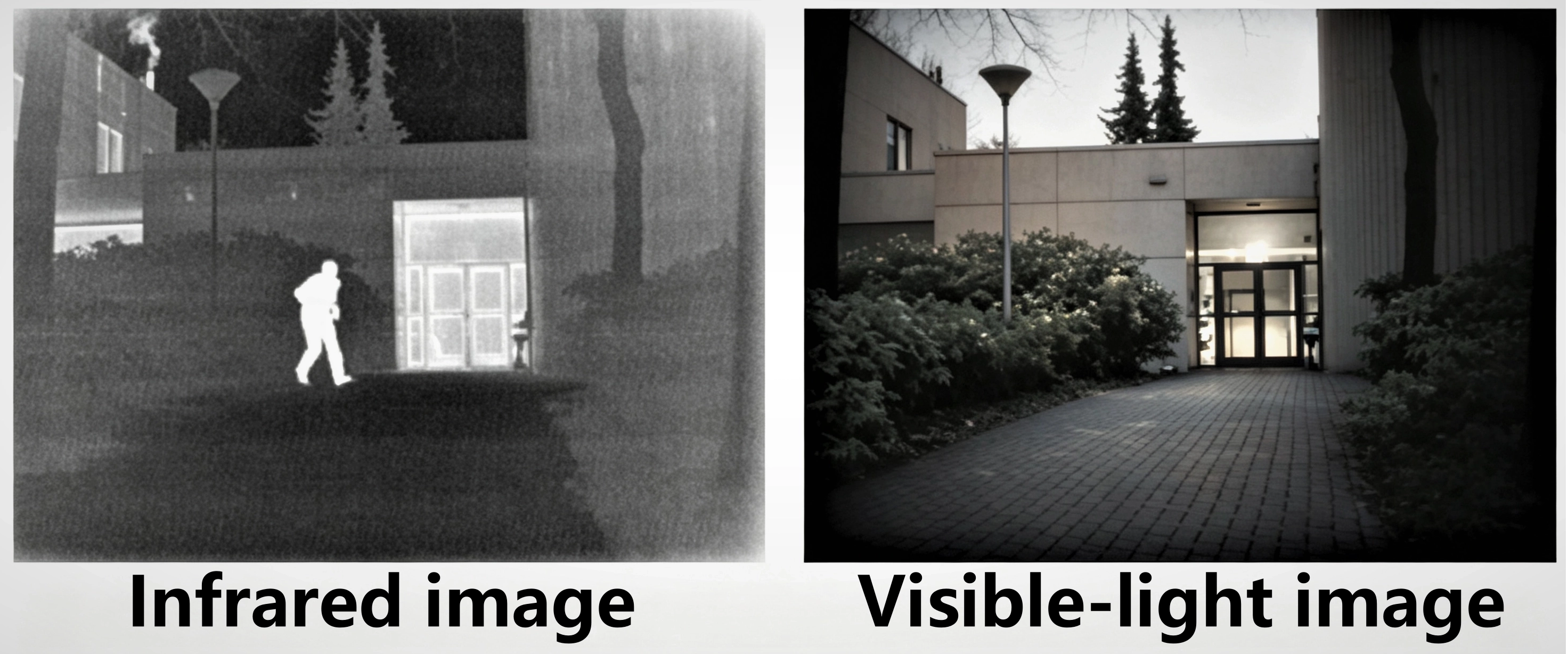

From the screen picture, users can directly distinguish the two devices without professional knowledge. Infrared night vision equipment outputs grayscale images similar to black-and-white surveillance footage. The brightness of the picture only reflects the distance between the target and the fill light, and has no connection with the object’s actual temperature. The image cannot reflect heat changes, and all objects display single gray tones without temperature color grading.

Thermal imaging devices present colorful thermal pictures with distinct color layering. Different colors represent different temperature ranges; high-temperature areas appear red, orange and yellow, while low-temperature areas show blue and purple. Even if two objects have similar shapes, their temperature differences can be clearly displayed on the screen, and the equipment can mark specific temperature values on any position of the picture.

In addition, night vision cameras will have blurred images and heavy light attenuation when facing long-distance targets, while thermal imaging equipment can maintain clear heat source outlines within an effective detection range without being affected by light reflection.

3. Different Applicable Scenarios and Actual Usage Limits

Ordinary active infrared night vision cameras are mostly applied to household security cameras, indoor monitoring probes and low-cost vehicle rearview auxiliary equipment. They are suitable for short-distance indoor observation, recording personnel movement and checking surrounding obstacles at night. Their obvious limitation is poor penetration in fog, smoke and heavy rain, and they fail to detect hidden heat faults such as circuit overheating and pipeline heat loss.

Passive thermal imaging infrared devices are widely used in electrical equipment troubleshooting, building wall heat leakage detection, outdoor all-weather safety patrol, animal search and rescue, and vehicle-mounted all-day obstacle recognition. They can work normally in total darkness, dense fog and backlight environments. However, this type of equipment cannot observe fine textures such as text, traffic signs and clothing patterns, and needs to cooperate with visible light cameras to complete full-scene observation.

Users often mistakenly buy thermal imagers for simple indoor monitoring, or purchase night vision cameras to detect equipment overheating, which leads to completely ineffective use of the equipment.

4. Obvious Gap in Manufacturing Cost and Market Price

The internal optical components and sensor chips of active infrared night vision cameras are low-cost ordinary materials, and mass production technology is very mature. A complete set of household infrared night vision equipment usually has a low selling price, with almost no threshold for civilian purchase.

Thermal imaging equipment needs special infrared optical lenses (chalcogenide glass or germanium crystal) and high-precision uncooled infrared detectors. The raw material and processing costs remain high, and the product price is dozens of times that of ordinary night vision cameras. Even entry-level consumer thermal imagers have much higher pricing than top-tier infrared night vision monitoring equipment.

If users only need simple night monitoring, purchasing expensive thermal imagers will form unnecessary cost waste. If heat detection functions are required, low-priced night vision cameras cannot meet the basic work demands at all.

Conclusion

Thermal imaging cameras and active infrared night vision cameras are frequently confused in daily purchases, yet they differ fundamentally in working principles, imaging effects, applicable scenes and overall costs. Night vision devices rely on infrared fill light to form grayscale images for short-distance monitoring, with low overall cost and no temperature measurement function. Thermal imagers passively capture object thermal radiation to generate color temperature pictures, supporting all-weather heat source detection and temperature reading, and are equipped with high-cost dedicated infrared optical parts.

Mastering the above distinguishing features helps ordinary users avoid purchasing unsuitable infrared products according to their actual use needs, effectively reduce unnecessary expenditure, and ensure the purchased infrared equipment can fully match daily inspection or monitoring requirements.
