What Is Cold Reflection Artifact? How It Degrades Thermal Images and Effective Avoidance Solutions

Brief Introduction

In uncooled LWIR thermal imaging systems, most image quality issues are attributed to detector performance, ambient temperature interference, or environmental noise. However, many subtle, fixed-pattern shading, dark spots, and background offset anomalies in field applications stem from a typical optical structural defect: cold reflection artifact. Unlike random scene noise, cold reflection is a systematic, inherent optical problem that cannot be eliminated by software calibration such as NUC (Non-Uniformity Correction).

Many system integrators overlook cold reflection indicators during lens selection and sample testing, resulting in stable lab test performance but poor and inconsistent field imaging effects. This article systematically explains the formation mechanism of cold reflection artifacts, analyzes its specific damage to thermal imaging pictures, and summarizes practical and industry-verified avoidance and optimization solutions for engineering selection and customized optical design.

Contents

1. The formation mechanism of lens cold reflection artifacts

2. Specific impacts of cold reflection on thermal imaging quality

3. Core differences between cold reflection noise and conventional thermal image noise

4. Practical solutions to avoid and suppress cold reflection artifacts

5. Field detection methods for cold reflection defects

1. The formation mechanism of lens cold reflection artifacts

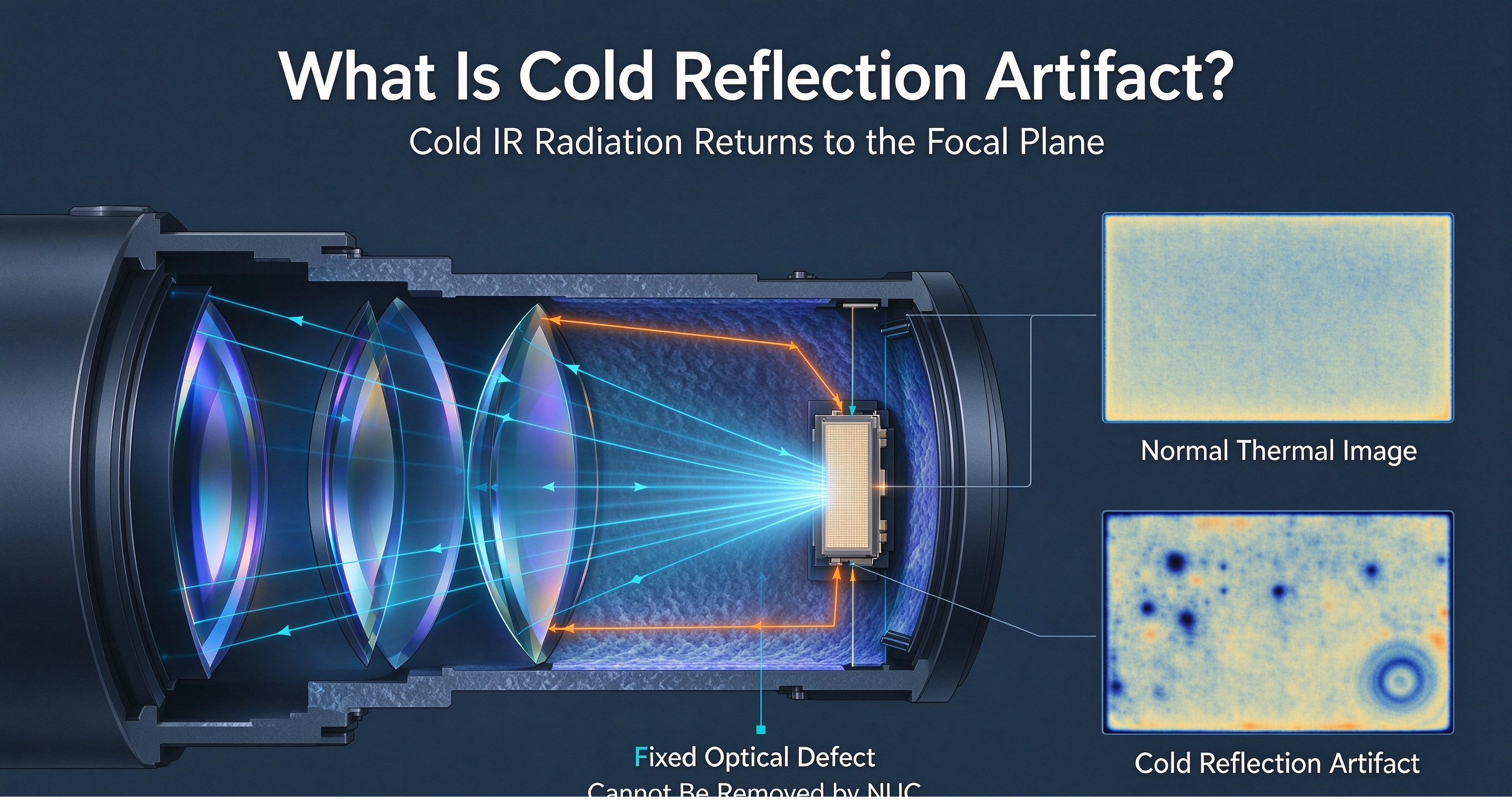

Cold reflection is a unique optical interference phenomenon exclusive to uncooled infrared thermal imaging systems. The core cause lies in the mutual reflection between the lens optical elements and the infrared focal plane detector.

The detector focal plane of an uncooled thermal camera is always in a low-temperature steady state relative to the external scene environment during operation. It will continuously emit low-intensity infrared radiation outward. When this cold infrared radiation passes through the infrared lens group, it will produce residual reflection on the surface of each lens element and the inner wall of the lens barrel. The reflected cold radiation will return and re-irradiate the detector focal plane, forming a fixed superimposed radiation offset on the imaging array. This returned cold radiation interference is the cold reflection artifact.

This problem is not related to lens F-number, focal length, or basic transmittance parameters. It is mainly determined by the optical structural design, lens surface tilt layout, optical coating process, and internal stray light suppression structure of the lens. Even high-transmittance and large-aperture infrared lenses will have obvious cold reflection problems if the structural design is defective.

2. Specific impacts of cold reflection on thermal imaging quality

Cold reflection artifacts produce fixed, regular interference on thermal images, which will not disappear with scene switching and cannot be eliminated by conventional software correction algorithms, seriously reducing the detection accuracy and imaging texture of thermal equipment.

First, it causes fixed background shading and ghost images. The most common manifestation is regular dark corners, central dark spots, or circular ghost shadows on the picture. These fixed shadows will cover low-temperature weak target signals, resulting in the failure to identify low-contrast targets such as distant personnel and equipment in outdoor monitoring scenarios.

Second, it leads to overall image offset and reduced temperature resolution. Cold reflection will form a superimposed cold radiation offset on the entire focal plane, raising the image’s overall gray level baseline. The subtle temperature difference signals of the target will be compressed, making it impossible for the equipment to distinguish tiny temperature changes, which directly affects the accuracy of industrial temperature measurement and early warning of subtle heat anomalies.

Third, it causes inconsistent imaging across the field of view. Cold reflection interference intensity varies in different areas of the lens field of view, resulting in uneven image brightness and temperature response. The central and edge imaging effects are inconsistent, destroying the uniformity of the full-screen picture and reducing the overall imaging quality grade of the thermal system.

3. Core differences between cold reflection noise and conventional thermal image noise

Most on-site engineers confuse cold reflection artifacts with conventional thermal noise, but the two have essential differences in generation mechanism and elimination methods.

Conventional image noise includes ambient thermal noise, electronic circuit noise, and scene random noise. Such noise is random and fluctuating, and can be effectively suppressed through NUC non-uniformity correction, frame accumulation filtering, and algorithm optimization.

Cold reflection is structural fixed noise. Its position, shape, and intensity are fixed and will not change with scene switching, shooting angle, and time. Software algorithms can only slightly optimize the picture but cannot fundamentally eliminate the interference. It is a hard defect determined by the lens optical structure and can only be solved by optical design and process optimization.

4. Practical solutions to avoid and suppress cold reflection artifacts

Cold reflection suppression is a critical optimization aspect in the industrial design of infrared lenses. Drawing on mass production and field application experience, effective countermeasures span optical design, mechanical structure and manufacturing processes.
