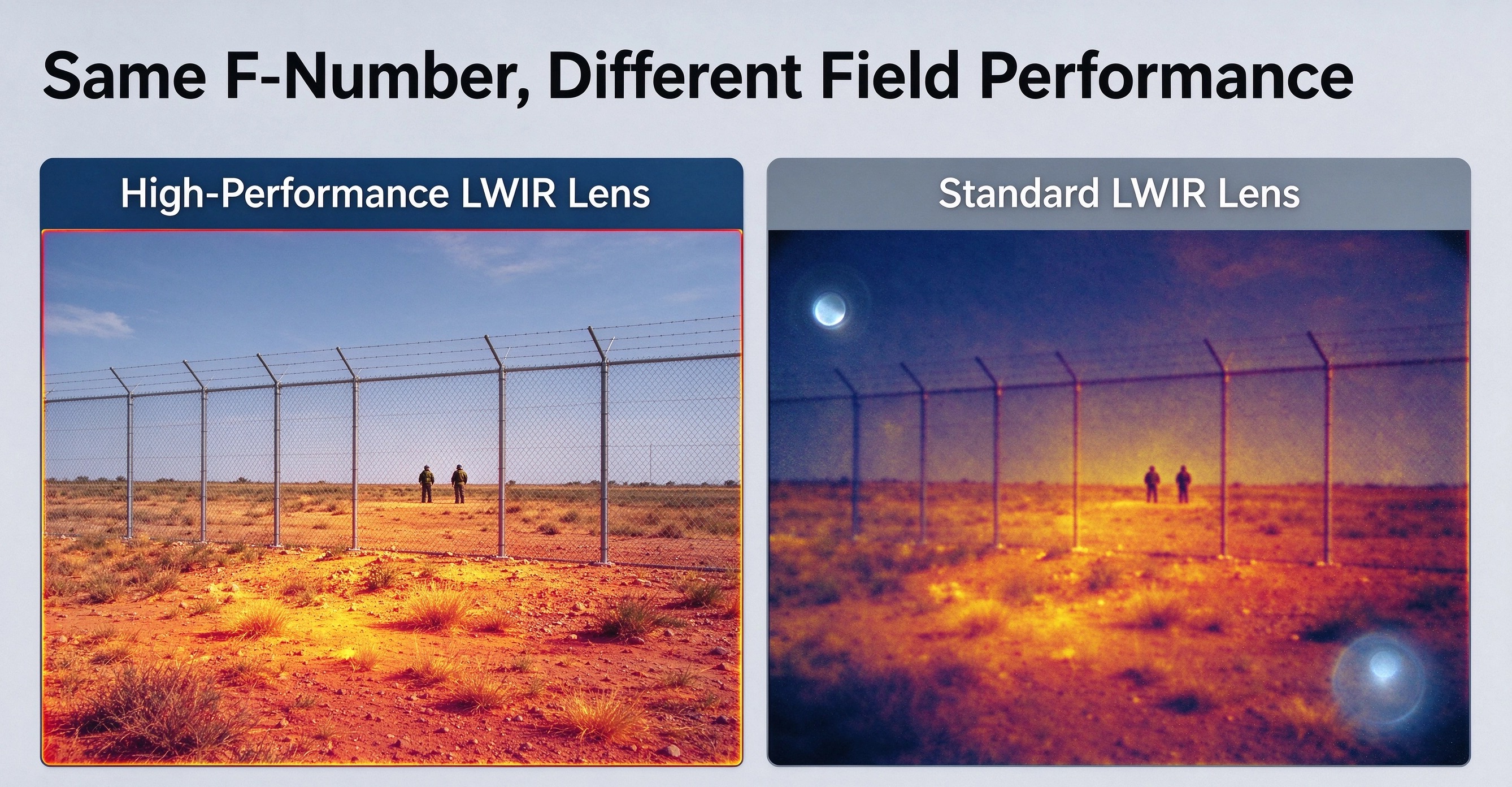

Why LWIR Lenses With Identical F-Number Deliver Different Real-World Field Performance

Views: 0     Author: Site Editor     Publish Time: 2026-09-28      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

Brief Introduction

Fnumber is widely treated as the primary benchmark for LWIR infrared lens selection among system integrators and hardware developers. Engineers tend to assume two lenses sharing the same f/# will produce equivalent imaging results, given matching focal length and detector configuration. In realworld outdoor deployment, however, endusers frequently observe obvious gaps in image sharpness, signaltonoise ratio, edge uniformity and temperature adaptability, even when lenses have identical nominal fnumber values.

This article breaks down the practical engineering causes behind such performance divergence. It focuses on realworld field conditions rather than ideal labbench data, to help OEM and integration teams make more informed lens evaluation and procurement decisions.

Contents

1.System optical transmittance and coating quality

2.Material characteristics and athermal design capability

3.Modulation Transfer Function (MTF), relative illumination and aberration control

4.Cold reflection and straylight suppression

5.Mechanical tolerance and assembly consistency

6.Practical guidance for fieldbased lens evaluation

1. System optical transmittance and coating quality

The fnumber defines theoretical lightgathering capacity based on aperture dimension, but it does not account for actual energy loss across lens elements. A typical multielement LWIR lens contains multiple airtomaterial interfaces. Without highperformance multilayer antireflection coatings, each surface generates reflection loss within the 812 μm band.

Two lenses with the same f/# can end up with large gaps in total system transmittance. Poorgrade coating may lead to severalpercentlevel energy loss per surface, lowering signal received by the uncooled detector. Under low thermalcontrast scenarios such as foggy or humid outdoor environments, this transmittance difference directly translates to worse SNR and weaker target detectability. Coating durability also varies: inferior coatings degrade faster under humidity, saltspray or thermal cycling, driving further performance drift after field installation.

2. Material characteristics and athermal design capability

LWIR optical materials, including germanium and chalcogenide glass, show significant refractiveindex shift versus temperature change. Germanium features a high dn/dt value, meaning focal position drifts heavily as ambient temperature rises or falls.

Two lenses with identical f/# may adopt different material combinations and athermal compensation strategies. Welloptimized lenses use passive athermal design through material matching to keep focus stable across40 °C ~ +85 °C. Lowercost alternatives skip rigorous athermal optimisation. While they perform acceptably at roomtemperature lab tests, visible defocus occurs once working temperature deviates from 25 °C reference point. For outdoor perimeter security, border monitoring and vehicleborne systems with wide operatingtemperature ranges, thermalinduced defocus becomes a major source of realworld performance degradation.

3. Modulation Transfer Function (MTF), relative illumination and aberration control

Nominal fnumber does not represent actual resolving power. Two lenses can share the same aperture size yet deliver very different MTF curves, determined by optical layout, aspheric surface usage and manufacturing tolerances. Some lowcost lens designs achieve target f/# but leave residual spherical aberration and chromatic aberration uncorrected. Centerfield MTF may look acceptable under lab testing, while edgeoffield resolution drops sharply in actual use.

Relative illumination is another easily overlooked factor. If the lens suffers from heavy vignetting, image corners receive far less infrared radiation than the central area. Users will notice dim corners, uneven thermal response across the whole fieldofview, even though the fnumber specification remains unchanged. Such defects rarely show up in smallfield lab sample checks but become obvious during fullframe field operation.

4. Cold reflection and straylight suppression

Coldreflection artifacts originate when infrared radiation from the cold detector surface reflects back from lens surfaces onto the focal plane, creating ghostlike shading or offset noise within thermal images. This phenomenon is strongly related to optical layout, surface tilt assignment and straylight trap structure, rather than f/#.

Two lenses with equal f/# can differ greatly in coldreflection suppression. One may keep artifacts below visible threshold through careful surfaceangle optimisation, while the other generates obvious fixedpattern noise in realscene imaging. Similarly, poorlytreated internal mechanical barrels produce stray background radiation, raising image offset and reducing effective contrast. These problems are hard to identify from datasheet parameters but seriously disturb fielddeployed thermal observation.

5. Mechanical tolerance and assembly consistency

Datasheet f/# is a theoretical design value. Final realworld performance is impacted by component machining tolerance, element centring error and assembly precision. Cheap lens products adopt loose tolerance budgets. Even if every individual part meets drawing limits, cumulative assembly error degrades practical imaging performance.

In massproduction scenarios, inconsistency between individual lens samples can appear. Some units deliver closetodesign performance, while others suffer from degraded MTF or decentrationcaused image distortion, despite sharing identical printed specifications.

6. Practical guidance for fieldbased lens evaluation

For system integrators, relying purely on datasheet f/# is insufficient for lens selection. When conducting comparative field tests, keep the detector core, gainoffset setting and environmental conditions consistent. Evaluate not only roomtemperature performance, but also image quality across full operatingtemperature range. Check both centralarea sharpness and corner illumination, observe whether fixedpattern ghost artifacts appear under different scene backgrounds. Prioritise realworld test data over singleparameter specification comparison.

Conclusion

Fnumber is a necessary but not sufficient indicator for LWIR lens performance. Total optical transmittance, coating reliability, athermal design, aberration correction, coldreflection control and manufacturing consistency jointly define actual fielddeployment results. Two lenses with identical f/# can deliver clearly distinguishable outputs under realworld conditions.

When sourcing thermal optics, system developers should expand evaluation beyond fnumber and focallength figures. It is recommended to include fulltemperaturerange testing and scenebased field validation during sample qualification, to avoid unexpected performance risks after product integration. For custom or semicustom projects, communicate with optical suppliers about abovementioned practicalperformance requirements at the early design phase.

If you have any questions, please contact us via email or telephone and we will get back to you as soon as possible.
