30-150mm F/0.95-1.13 LWIR Continuous Zoom Lens – High-Resolution Compatible 5× Thermal Imaging Optic

The 30-150mm F/0.95-1.13 LWIR Continuous Zoom Lens is a high-performance 5× zoom infrared optic engineered for 1280×1024–12μm high-resolution detectors, as well as 640×512–17μm and 640×512–12μm standard-format cores, delivering seamless focal length transitions from wide-area situational awareness to long-range target identification across the 8–14μm band. With an ultra-fast aperture ranging from F/0.95 at wide-angle to F/1.13 at telephoto—among the fastest in its class—this lens maximizes infrared energy capture to ensure superior thermal sensitivity and image clarity even in low-contrast or challenging atmospheric conditions. The motorized zoom and focus mechanisms enable fully remote operation via 12V DC power supply, allowing rapid, precise field-of-view adjustments critical for dynamic surveillance and tracking missions without mechanical intervention.

Weighing 2.96kg, this rugged lens is purpose-built for integration into heavy-duty pan-tilt units, coastal surveillance networks, vehicle-mounted observation platforms, and fixed border security installations requiring sustained long-range performance. The imaging range extends from 10 meters to infinity across the entire zoom range, accommodating both medium-range scene assessment and extreme-distance target discrimination. Featuring DLC coating for robust environmental protection and reliable operation from –40°C to +60°C, this lens delivers the reach, versatility, and durability demanded by professional-grade thermal imaging systems deployed in the most demanding operational environments.

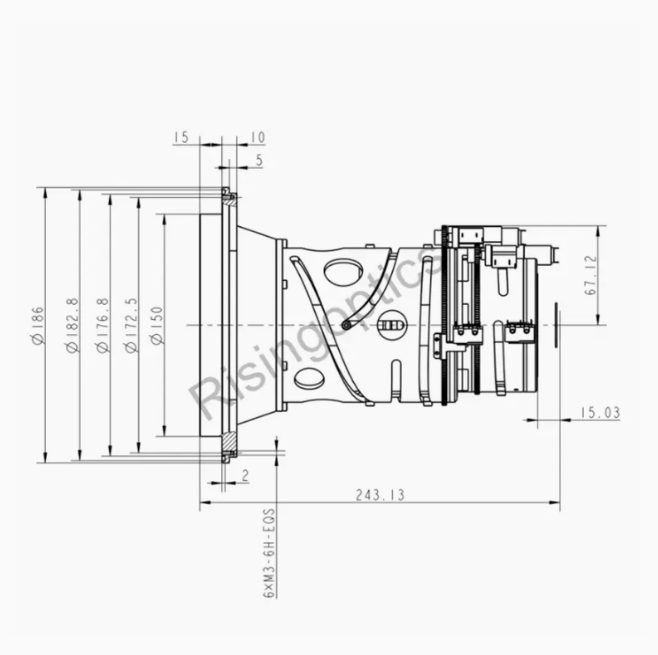

30-150mm f/0.95-1.13 lwir continuous zoom lens parameter
