75mm F/1.0 LWIR Uncooled Motorized Lens – High-Resolution Long-Range Thermal Optic

The 75mm F/1.0 LWIR Uncooled Motorized Lens is a premium long-range infrared optic purpose-built for 1024×768–17μm high-resolution detectors, delivering exceptional target discrimination and thermal detail retrieval at extended distances—ideal for high-end surveillance, critical infrastructure protection, and long-range reconnaissance applications. With an ultra-fast F/1.0 aperture and DLC coating for superior surface durability across the 8–12μm band, this lens maximizes infrared energy capture to ensure outstanding image brightness and contrast even in low-light or adverse weather conditions, while the motorized focus mechanism enables precise remote adjustment via 8V DC power supply for seamless integration into automated or operator-controlled systems.

Weighing just 450g, this compact yet rugged lens is designed for integration into pan-tilt units, vehicle-mounted observation systems, fixed surveillance towers, and UAV payloads where extended reach and high-resolution imaging are critical. Engineered to operate reliably from –40°C to +60°C, it delivers consistent optical performance across extreme environmental conditions. The combination of a high-resolution-compatible optical design, ultra-fast aperture, and motorized focus capability makes this lens an ideal choice for professional-grade thermal imaging systems requiring uncompromised long-range detection and identification performance in mission-critical deployments.

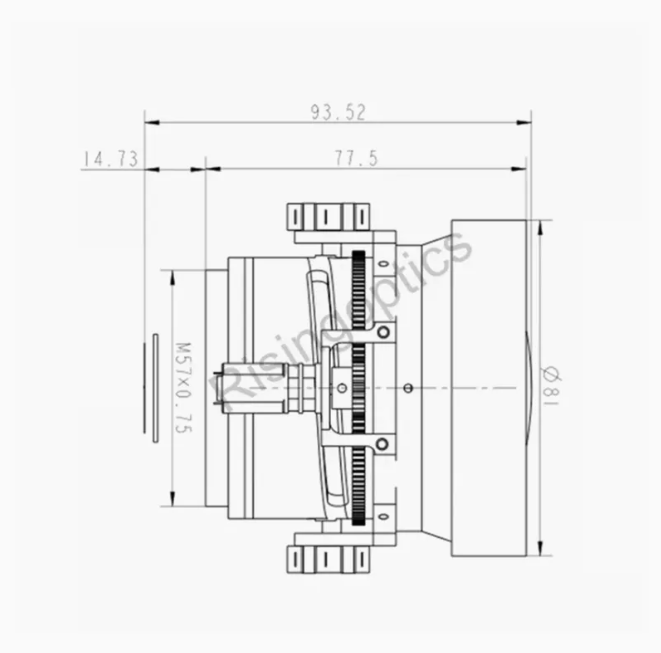

75mm F#1.0 Uncooled motorized lens parameter
