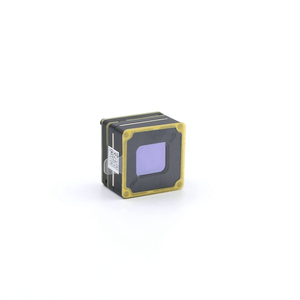

1280x1024-12um Uncooled Infrared camera module

Share to:

Availability:



Inquire

Product Description

Feature of Thermal Camera Module:

The FO-A1212-V03HK type uncooled infrared camera components output video resolution of 1280 × 1024, high reliability design, with good anti-vibration, shock resistance, high resolution, small size, light weight, low power consumption, low cost.

It meets the scenarios of vehicle-mounted, guidance, and optoelectronic pods.

Thermal Camera Module Parameters:

Performance indicators	Detector Type	Vanadium Oxide Uncooled Infrared Focal Plane Detector
	Detector Pixel	1280x1024
	Image Element Size	12μm
	Working band	8μm～14μm
	NETD	≤50mK(@f/1.0,30Hz,300K)
	MRTD	MRTD≤450mK
	Lens Adaptation Type	Non-thermalized lens/motorized lens/continous zoom lens
Function	Video output	One CameraLink video output
	Video output	Output frame rate: 25Hz
	Self-checking function	Power-on self-test, command self-test and cycle self-test (can feedback the working status of main components)
	Electronic zoom	2x, 4x electronic magnification
	Calibration adjustment function	Image enhancement function with adjustable enhancement level
		Nonuniformity correction（Auto/manual）
		Bad element calibration
	Image Adjustment Function	Black heat/white heat polarity switching (default white heat)
		Horizontal/vertical image flip function
		Image contrast brightness adjustment function
		Load/fade/move function with cross-hatching
Electrical Characteristics	Power supply	DC5～6V
	Power consumption	≤1.5W
	External communication	RS422
	Power supply interface	Separate Pad
	Video output	CameraLink interface
	Video output interface	MJS2045520-2 Connector
Performance	Start-up time	Power-on time ≤10s@25℃
Performance	Service life	Repeat start times: ≤100000 times
Physical characteristics	Demension	≤45mm×45mm×34.5mm
Physical characteristics	Weight	≤130g
